The Smart Press range of pneumatic presses from Pera Pellenc winemaking equipment.

Smart Press Range

The new Smart Press range of pneumatic presses meets the needs of the most demanding winemakers. They are equipped with the latest innovations. The Fast Press drainage trays and the smart pressing system allow optimal use of the press to extract high-quality juices. The Smart Press pneumatic press range is available for all cellars, from 20 to 600 hl in the closedcage version, and 40 to 150 hl in the open-cage version.

"I decided to invest in a PELLENC PERA OENOPROCESS press for several reasons:
● The quality and speed of the juice extraction
● The automatic washing system in the Smart Press has built-in washing—including under the grids—which delivers a very satisfactory result.
● The technical support provided by PELLENC PERA OENOPROCESS and its distributor from installation all the way to use during harvesting."

Jean Marie Quef
Domaine de l’Amaurigue
Provence Region, FRANCE

PERA   ADVANTAGES   Pera Pellenc advantages, winemaking equipment: Pera patented innovation

Smart Press SPC 30 pneumatic press from Pera Pellenc, winemaking equipment.
Smart Press SPC 20

QUALITY

• Protected juices (SPC).
• The juices run directly into the closed, inerted juice tank (SPC).
• The aromas are preserved, and the colour is protected.
• Easy Press 2 smart pressing cycles guarantee the quality.
• The juice is clear, not cloudy, thanks to self-filtration through the pomace.
• Ingas and Enoxy+ systems protect against oxidation.
• The juice at the end of the pressing is better protected and maintained.

Smart Press SPC 150 pneumatic press from Pera Pellenc, winemaking equipment.
Smart Press SPC 150

Cost effectiveness

• Less time between pressing cycles.
• Increased filling capacity.
• Choice of cycle depending on the desired profile.
• Saves water and energy.
• The press can be used for skin maceration (SPC).
• Qualified on-site maintenance and after-sales service.
• Fewer winemaking additives used.

Smart Press SPC 150 pneumatic press from Pera Pellenc, winemaking equipment.
Smart Press SPC 240 - axial feed

COMFORT

• The new Touch Press colour touchscreen: ergonomic and intuitive.
• Easy Press 2 Smart management of pressing cycles.
• The press is quick and easy to wash thanks to the Fast Press* trays (15 to 30 minutes) or the pierced tank (SPO).
• Easier to use.
• Less handling by the operator.
• Pomace is emptied completely and quickly.

Easy-to-open Fast Press drainage trays - Smart Press pneumatic press
Smart Press SPO 110 on trailer

PERFORMANCES

• The comprehensive range has something suitable for every cellar.
• Complete drainage cap for thorough cleaning of the press.
• Hardy, reliable design.
• Faster juice run-off: larger drainage surface than the previous range (+30 to 140%)* (SPC).
• Improved filling capacity: faster drainage (up to 30 %)* (SPC).
• Shorter pressing time.

* depending on the model, type and condition of the grapes, and filling time

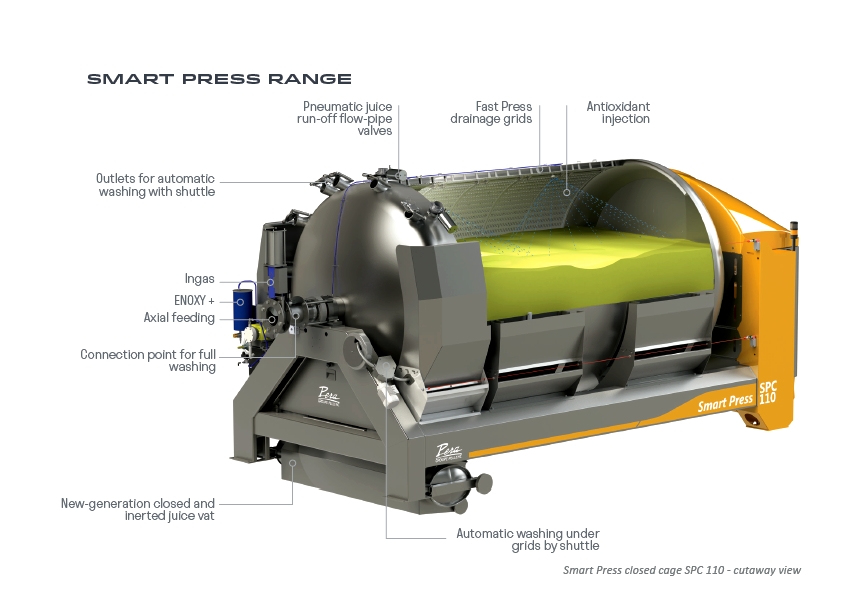

Diagram of Smart Press pneumatic press from Pera Pellenc, winemaking equipment
The grapes can be fed into the press in 2 ways:

Axial feeding

matic valve for Smart Press pneumatic press from Pera Pellenc, winemaking equipment
Smart Press SPC 240 - axial feed
Motorised doors for Smart Press pneumatic press from Pera Pellenc, winemaking equipment

Axial inlet with pneumatic valve

Motorised doors for Smart Press pneumatic press from Pera Pellenc, winemaking equipment

Axial inlet with manual
valve

Gravity or by conveyor: door feed, one or two doors

matic valve for Smart Press pneumatic press from Pera Pellenc, winemaking equipment
SPO 150 presses, door feed
Motorised doors for Smart Press pneumatic press from Pera Pellenc, winemaking equipment
Two independent motorised doors

OPTIMISED DESIGN FOR MAXIMUM PERFORMANCE:



Pera-Pellenc R&D engineers have conceived simple, efficient systems which improve Smart Press pressing efficiency. There are significant improvements: better filling capacity, improved drainage, better pressing time, easy to use.


Optimised design for pressing to meet all needs:



• Increased drainage surface: up to 360% more*
• Greater filling capacity: up to 30% more*
• Faster pressing: up to one hour less*


The Smart Press range is available with two types of cage to meet all wineries requirement:
Mode de programmation Easy Press 2 du pressoir pneumatique Smart Press
Open cage
from 40 to 150 hl
Pierced vat = no scraping effect, and better cleaning.
Mode de programmation Easy Press 2 du pressoir pneumatique Smart Press
Cage fermée
Du 20 au 600 hl
Grilles Fast Press = meilleur égouttage et lavage facilité

The Smart Press cages are fitted with a set of important elements to optimise pressing and maintenance:



• An air-diffuser drain for better-balanced pressing on the membrane • The membrane is made of food-grade polyurethane (compliant with CE/FDA food standards) for pressing even with a very small quantity of grapes
• A coil brings the pomace to the door(s) for total, fast emptying of the press.
• A technical access hatch (inspection cover: on 65 to 600hl) to give access to the air part of the vat, and help with maintenance of the membrane.

Pera-Pellenc details which make the difference:



Intuitive touchscreen interface Touch Press for the Smart Press pneumatic press
Hardy design: Smart Press 480 – 600:
the press cage is set on two bogies
The Easy Press 2 smart press system for the Smart Press pneumatic press: choice of grape type
Motorised press
travels on rails
The Easy Press 2 smart press system for the Smart Press pneumatic press: choice of pressing criteria
Technical access hatch
to tank on air side

one simple and smart programming

The new intuitive Touch Press tactile interface and the Easy Press 2 smart pressing system simplify use from the outset:

• Pressing cycles customised to meet the needs of the cellar (logistics, quality, etc.)
• Real-time adjustable pressing programme
• Save the programmes (in advanced mode) on a USB memory stick for perfect traceability
•The pressing cycle depends on two criteria set by the operator: quality and dryness of the pomace
• Real-time information on any problems for faster response time by operators

The touchscreen for controlling the Smart Press pneumatic press
Simple and intuitive touch control screen
Intuitive touchscreen interface Touch Press for the Smart Press pneumatic press
Touch Press : choice of operation
The Easy Press 2 smart press system for the Smart Press pneumatic press: choice of grape type
Easy Press 2 : choice of grape type
The Easy Press 2 smart press system for the Smart Press pneumatic press: choice of pressing criteria
Easy Press 2 : choice of pressing criteria

Two modes of programming available

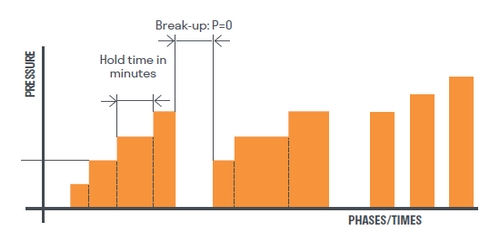

Advanced

Advanced programming mode for the Smart Press pneumatic press

Customisable

• Programming of the different pressing phases by the operator: pressure, maintenance times, number of breaking-up cycles
• 20 programs with 99 possible programming lines

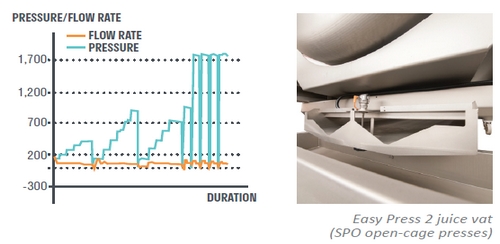

Easy Press 2

The Easy Press 2 programming mode for the Smart Press pneumatic press

Smart

• The automat manages the pressing cycles according to the juice flow and the end of the cycles depending on the desired degree of dryness
• Pressing time and number of breaking up cycles optimized
• Better quality of the extracted juices
• Pressing stops when the press cake reaches a certain dryness
• 5 predefined types of grapes: destemmed grapes, whole clusters, fermented pomace, shot grapes, end of maceration

OPTIMISED DESIGN FOR QUICK, EASY CLEANING:



The new Smart Press has features to help with cleaning. In the closed-cage version, the Fast Press drainage trays have few nooks and crannies and help ensure the pomace is completely removed. The quick fold-back system gives complete access under the trays. The open-cage presses (SPO) are designed to be quick and easy to clean. The cage is pierced to make it easier to clean the slots and reduce washing time and water consumption. The built-in automatic washing systems help reduce washing time to less than 30 minutes.


The Easy Press 2 programming mode for the Smart Press pneumatic press

SPC - Inside the press

The Easy Press 2 programming mode for the Smart Press pneumatic press

SPC- Easy-to-open Fast Press grids

The design is optimised for easier washing of the press:
• The new Fast Press drainage grids and the emptying coil gather the pomace towards the chosen door, so it can be removed entirely.
• The fast grid opening system makes it easier to thoroughly wash the vat. Daily washing is faster: 30 minutes on average.
No more inaccessible corners, the vat is cleaned perfectly


The Easy Press 2 programming mode for the Smart Press pneumatic press

SPC - Full washing – sliding grids

The Easy Press 2 programming mode for the Smart Press pneumatic press

SPC - Pomace drainage coils

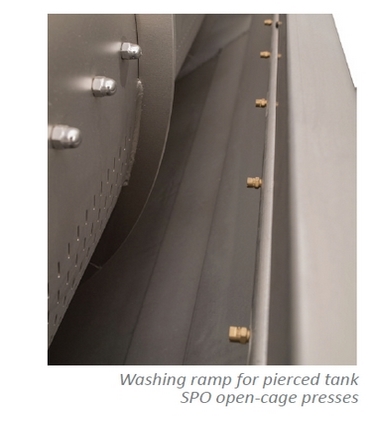

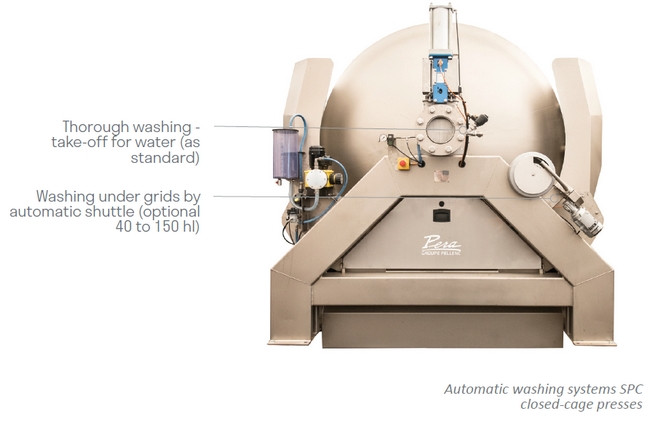

The automatic washing systems incorporated into the presses
(complete washing under the grids) allow:
• Reduced water consumption
• Shorter washing time at the end of day
• Quick and easy thorough washing under the grids

The Easy Press 2 programming mode for the Smart Press pneumatic press
The Easy Press 2 programming mode for the Smart Press pneumatic press

SMART GRAPH TOOL TO HELP OPTIMISE PRESSING



Smart Graph is a decision-making aid that allows the winemaker to understand and optimise the pressing. It enables a real-time diagnostic directly on the screen on the press, or later on a computer with Smart Graph software. By analysing the curves, the winemaker can get an understanding of problems arising from filling, clogging, etc. and take steps to optimise the various pressing phases (filling, drainage, pressing, and so on). This has a direct impact on the quality of the wines (sludge rate, rapid extraction of juices = limits oxidation) and decisions about bringing in the harvest.

Optimising the various pressing steps has a significant impact on the pressing time. In many cases, it shortens the pressing process and saves the cellar a considerable amount of time.


The Easy Press 2 programming mode for the Smart Press pneumatic press
Real-time visualisation of curves on the Touch Press interface
The Easy Press 2 programming mode for the Smart Press pneumatic press
Subsequent visualisation of curves on a computer with the Smart Graph software


Smart Graph lets the user visualise the progress of the pressing process in real time.
The following information can be displayed as a curve:

• Pressure applied by the membrane
• Axial feeding pressure (in the case of axial filling)
• Quantity of juice extracted
• Complete juice height (computer version only): percentage of juice run-off/total juice according to time elapsed
• Antioxidant injection (if Enoxy+ option)
• Conductivity (if equipped with conductivity monitoring, available as an option)
• As well as 3 additional possible parameters (depending on options)
The pressing data is stored on an SD card in the press interface.

The Easy Press 2 programming mode for the Smart Press pneumatic press
Display of each parameter as a curve


PERA ADVANTAGES


• Better understand the pressing process by visualising the various parameters as curves on a graph
• Have operational traceability of the pressing cycles
• Save time on pressing
• Optimise your pressing cycles (stages, rotations) in real time or afterwards
• Rationalise your harvest input = optimise the logistics of bringing in the harvest

The Easy Press 2 programming mode for the Smart Press pneumatic press
Display on the Touch Press interface and option of zooming in on a section of the curve



NEUTRAL GASES INJECTED DURINGCRUMBLING

In addition to Ingas, it is possible to inject a neutral gas (Nitrogen or CO2) during crumbling in order to obtain optimal protection against must oxidation.
This straightforward and effective system is controlled directly from the Touch Press interface on the press.
The operator chooses the duration and timing of the injection.





JUICE SELECTOR AND CONDUCTIVITY PROBE

It lets the operator direct the must towards one of two channels according to criteria defined by the winemaker: phases of the pressing cycle, elapsed time, conductivity.
Each channel is connected to a tank. The valves controlled by the juice selector are managed automatically thanks to the Touch Press interface on the presses.
In the pressing program, for each line of the pressing cycle, the operator selects the channel to which the juice run-off will be directed.
The 3rd channel is used to wash the pipes. The conductivity probe at the outlet of the juice tank makes it possible to set up a qualitative selection of juices according to the conductivity of the run-off.

SULFITE DOSER ON JUICE TANK

This system, controlled by the press PLC, allows the injection of liquid antioxidant into the bottom of the juice. This simple and efficient system complements the oxidation protection offered by Smart Press presses.




DOUBLE WALL*

The double wall allows for cooling and maintaining the temperature of the harvest inside the press.
It enables maceration at a controlled temperature.
This option is available on Smart Press SPC 240 to 600 presses.

*The effectiveness of the system depends on many factors (climatic factors, harvest input temperature, etc.)




GAMME SMART PRESS
SPO open cage
SPC closed cage
Capacité de la cuve (hl)
40
50
65
80
110
150
20
30
40
50
65
80
110
150
Min quantity
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
0 Kg
Door feeding
1 manual double door
1 manual double door
1 or 2 independent motorised doors
1 or 2 independent motorised doors
1 or 2 independent motorised doors
1 or 2 independent motorised doors
1 manual double door
1 manual double door
1 airtight motorised door
1 or 2 independent motorised airtight doors
1 or 2 independent motorised airtight doors
1 or 2 independent motorised airtight doors
1 or 2 independent motorised airtight doors
1 or 2 independent motorised airtight doors
Axial feed with full capacity detector

Ø125

Ø125

Ø125

Ø125

Ø150

Ø125

Ø125

Ø125

Ø125

Ø125

Ø125

Ø150

Ø150
Juice flow
Total drainage plug Sliding vat
Total drainage plug Sliding vat
Total drainage plug Sliding vat
Total drainage plug Sliding vat
Total drainage plug Sliding vat
Total drainage plug Sliding vat
Flow directly to the trough.
Flow directly to the trough.
3 outlets - drains directly into the closed juice tray
3 outlets - drains directly into the closed juice tray
3 outlets - drains directly into the closed juice tray
3 outlets - drains directly into the closed juice tray
3 outlets - drains directly into the closed juice tray
3 outlets - drains directly into the closed juice tray
Automatic washing cycle
Automatic high pressure washing
-
-
Draining
Half vat perforated with oblong holes
Half vat perforated with oblong holes
Half vat perforated with oblong holes
Half vat perforated with oblong holes
Half vat perforated with oblong holes
Half vat perforated with oblong holes
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press dejuicing grids
Fast Press tray Electropolished
-
-
-
-
-
-
Ingas
-
-
-
-
-
-
-
-
-
ENOXY +
-
-
Advanced Pressing Cycle
Easy Press 2 smart pressing cycle
-
-
Touch Press colour touch screen
Membrane
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
Standard Optional - Not available


SPC closed cage
Capacité de la cuve (hl)
240
320
480
600
Min quantity
0KG
0KG
0KG
0KG
Door feeding
1 or 2 independent motorised doors
1 or 2 independent motorised doors
1 or 2 independent motorised doors
1 or 2 independent motorised doors
Axial feed with full capacity detector

Ø150

Ø150

Ø150

Ø150
Juice flow
3 outlets - drains directly into the closed juice tray
Vannes pneumatiques
3 outlets - drains directly into the closed juice tray
Vannes pneumatiques
3 outlets - drains directly into the closed juice tray
Vannes pneumatiques
3 outlets - drains directly into the closed juice tray
Vannes pneumatiques
Automatic washing cycle
Fast Press dejuicing grids
Fast Press tray Electropolished
Ingas
ENOXY +
Manhole
Advanced Pressing Cycle
Easy Press 2 smart pressing cycle
Touch Press colour touch screen
Membrane
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
High density polyester frame covered with food grade polyurethane, FDA/EEC 1227
Standard Optional - Not available
See the equipment's technical properties
